CNC Busbar Processing Machine
Punching/Cutting/Bending
Punching, Cutting and Bending. It can processed for copper and aluminum. Three stations can work at the same time so it will save your time and improve your work efficiency.
strong load-bearing capacity
35mm thickness second-layer slab
Φ60 hard shaft high temperature quenching hardness reaches 55 or more
Nodular cast iron integrated turret with six stations or eight stations is optional
Increase the shearing pressure by 50 tons of oil cylinder (large shearing force and smooth section)
60*60*5(mm) square tube used for the large rack of the equipment, strong and stable
Main Function
Mianly Processing For Copper Aluminum
Punching Process
The punching station is equipped with a two-way positioning device, which is suitable for mass production in the factory. It can realize the mechanical two-way positioning of the X axis and the Y axis. During the work process, the operator does not need to draw a cross line or punch a foreign punch, which improves the work efficiency and the accuracy of the punching position. Positioning pin Positioning pin makes production and processing positioning more accurate Laser positioning The marking is accurate, intuitive and practical, stable, easy to operate, can improve work efficiency and reduce waste. The laser line is arbitrarily fine-tuned in the three-dimensional space to achieve the best use effect.
Cutting Process
The cutting unit adopts a double-column double-knife type cutting structure, and the upper knife and the lower knife are installed vertically and parallel to ensure that the cutting edge is flat, no waste, and no deformation after long-term use. Increase the shearing pressure by 50 tons.
Bending Process
The bending station adopts a closed bending structure for reinforcement and durability. The flat bending, vertical bending and embossing are more uniform, and the U-shaped bending function can be realized. The minimum distance between the two bends is 40mm.

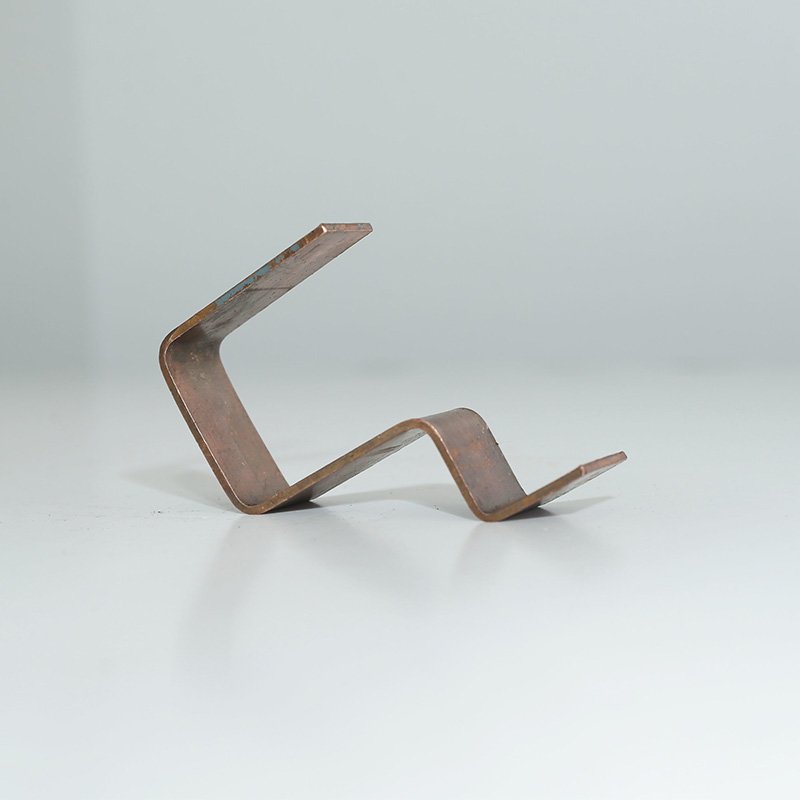

Sample Display
Punching/Cutting/Copper Bar/Embossing/Bending/Twist

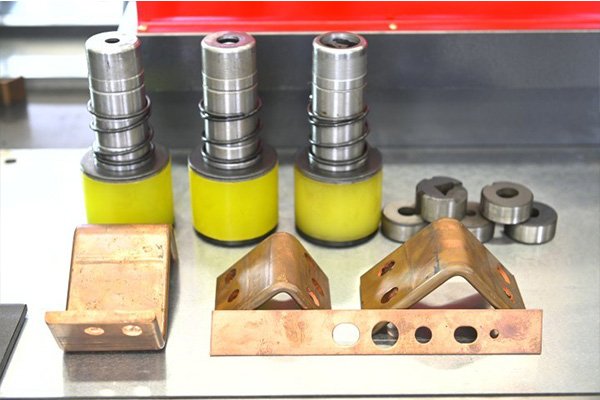

Busbar Machine Accessories
buy a multi station busbar processing machine with the following accessories
