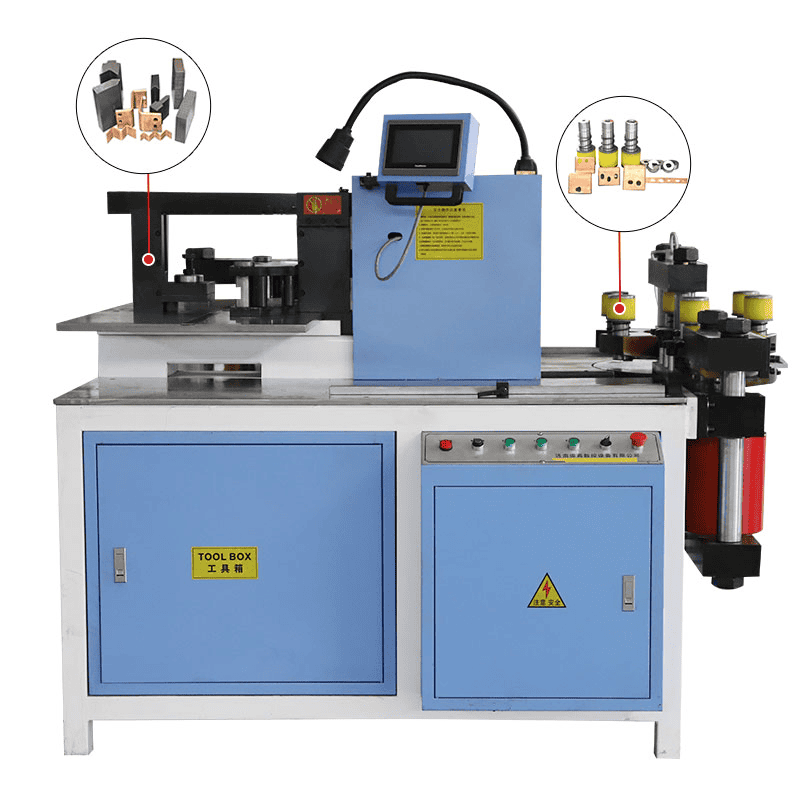

Multifunctional Copper Processing Machine
Punching/Cutting/Bending

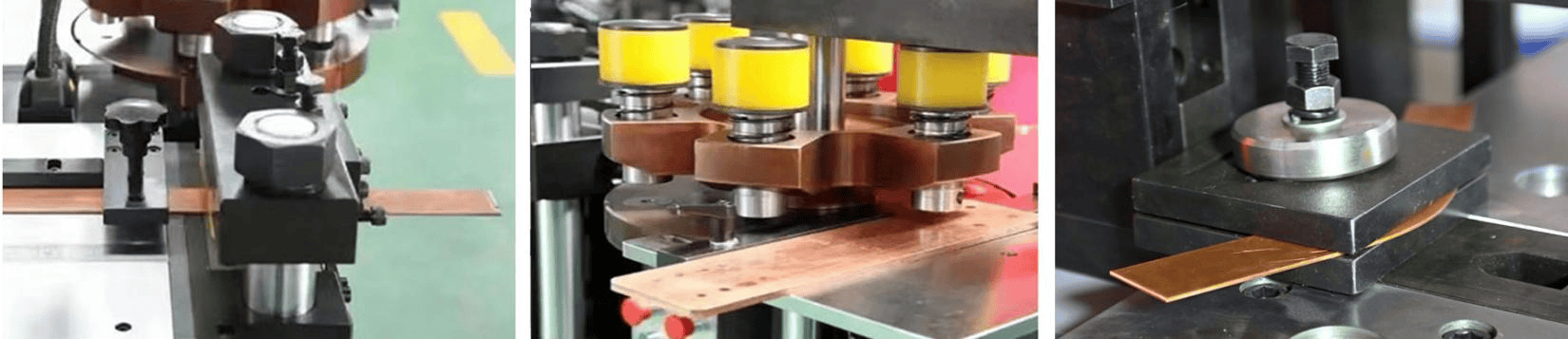

multi-functional copper processing machine has three stations: punching, cutting and bending. It can work on copper and aluminium. The three stations can work simultaneously, which will save you time and increase your productivity.
PRODUCT SPECIFICATIONS
Mianly Processing For Copper Aluminum
Busbar Machine Model |
| DSMX-303ESK-B | DSMX-503ESK-B | DSMX-803ESK-B |
Punching | Max. Puncing Force (KN) | 300 | 500 | 800 |
| Punching Diameter Range (MM) | Ø4.3-Ø30 | Ø4.3-Ø36 | Ø4.3-Ø36 |
| Max. Thickness (MM) | 12 | 16 | 20 |
| Max. Width (MM) | 160 | 260 | 300 |
Shearing/Cutting | Max. Shearing Thickness(KN) | 12 | 16 | 20 |
| Max. Shearing Width (MM) | 160 | 260 | 300 |
| Max. Bending Force (KN) | 500 | 800 | 800 |
Vertical Bending | Max. Thickness (MM) | 10 | 10 | 10 |
| Max. Width (MM) | 100 | 100 | 100 |
Horizontal Bending | Max. Width (MM) | 12 | 16 | 20 |
| Max. Width (MM) | 150 | 260 | 300 |
Twisting Bending | Max. Thickness (MM) | 12 | 16 | 20 |
| Max. Width (MM) | 160 | 260 | 200 |
Out Dimension | Out Dimension | 1890*1350*1400 | 1925*1560*1490 | 2050*1600*1650 |
Power | Power | 3 x 4kw | 3 x 5.5kw | 3 x 5.5kw |
CNC Precision | Bending Precision | ±1° | ±1° | ±1° |
| Repeat Bending Precision | ±0.3° | ±0.3° | ±0.3° |
Product Function

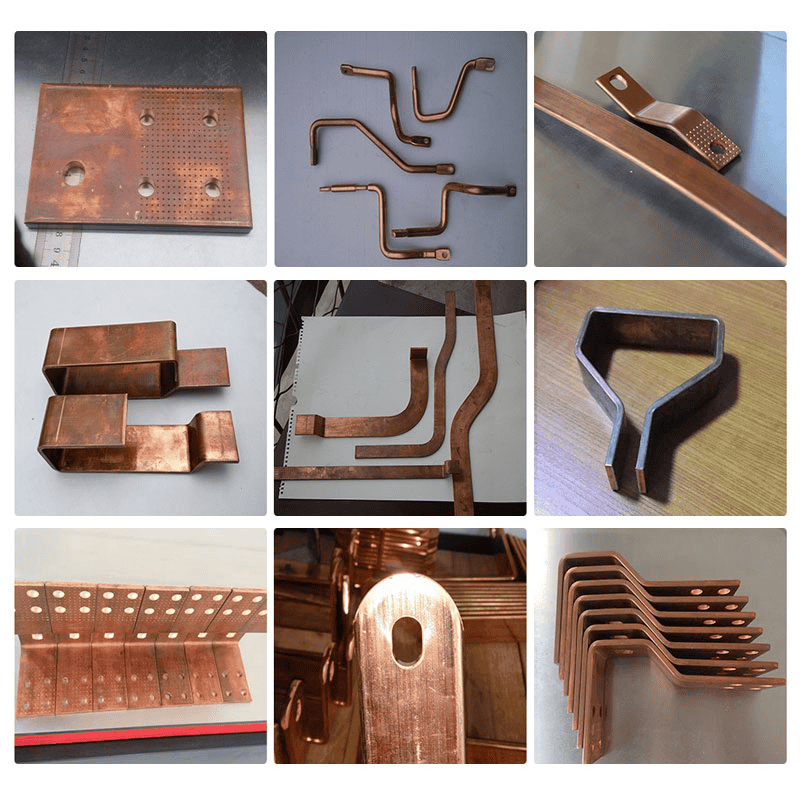

Punching: square hole, round hole, long hole cutting angle bending: large flat bending, small flat bending, large vertical bending, small vertical bending, U-bending, twisting twist, flattening, no indentation, pressing line, pressing copper bar.Shearing: a variety of specifications of copper row can be processed.
